Sinoceramics, Inc. provide piezoelectric igniter, ceramic igniter assembly, electrical igniter ect. These OEM’s production solutions form top-quality, cost-effective systems for a full range of applications. We protect customer proprietary technical information.

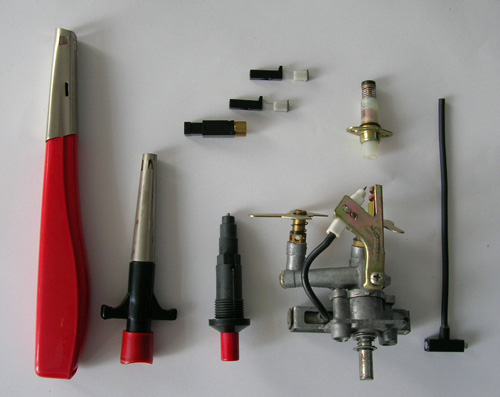

Piezoelectric Igniter
Pushbutton
The environmental operation temperature is –40℃-125℃
The minimum output voltage is 17000 volt
The electromechanical coupling coefficient of internal ignition particle KP=0.62
The relative dielectric constant of internal ignition particle K33=1750
The piezoelectric constant of internal ignition particle D33=400x10-12pC/N
The service life of internal ignition particle exceeds 30000 times
Pulse Igniter
Scope of application: gas oven, stove, BBQ and other gas appliance with AC input
Description of function: The pulse igniter adopts AC input. After control switch is turned on, its output terminal outputs high voltage and creates electric spark so as to ignite flammable gas.
We are specialized in supplying all kinds of OEM products to meet the customers’ requirements.

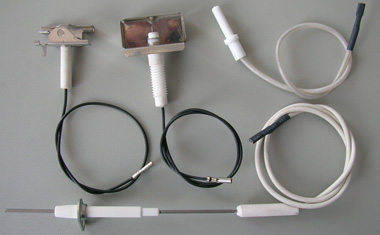

Spark Electrode Series Alumina Ceramics:
Technical Capability
|
|||||
Character
|
Flexural Strength (kg/cm2)
|
Hardness (HRa)
|
Volume Resistivity (Ω.CM at R.T)
|
Density (g/cm3)
|
Thermal
conductivity |
75%Al2O3
|
3000
|
78
|
>1012
|
3.2
|
6-7
|
95%Al2O3
|
3600
|
82
|
>1014
|
3.6
|
21.8
|
99%Al2O3
|
4000
|
89
|
>1014
|
3.8
|
31.4
|
Features: High temperature, High Voltage, Good Insulation
