Ultrasonic cleaning ring & transducer
Ultrasonic Cleaning Ring and Transducer
Ceramic Material: 4D13
- |
Piezolectric Charge contants d33[pc/n] |
Free Capacitance c[pf] |
Dielectric Loss tand[%] |
Resonant Frequency fs[khz] |
Outline Dimensions |
||
D[mm] |
d[mm] |
T[mm] |
|||||
Æ34.8´Æ15.0´5.50 |
320 |
1750+/-10% |
≤0.5 |
42+/-5% |
34.80+/-0.25 |
15.00+/-0.15 |
5.50+/-0.05 |
Æ38.1´Æ12.7´6.35 |
>320 |
1600+/-10% |
≤0.5 |
43+/-5% |
38.10+/-0.25 |
12.70+/-0.15 |
6.35+/-0.05 |
Æ50.0´Æ15.0´6.00 |
>320 |
4000+/-10% |
≤0.5 |
41+/-5% |
50.00+/-0.25 |
15.00+/-0.15 |
6.00+/-0.05 |
Æ50.0´Æ27.8´6.00 |
>280 |
2900+/-10% |
≤0.5 |
26+/-5% |
50.00+/-0.25 |
27.80+/-0.15 |
6.00+/-0.05 |
Æ50.0´Æ19.1´6.35 |
>289 |
3700+/-10% |
≤0.5 |
31+/-5% |
50.00+/-0.25 |
19.10+/-0.15 |
6.35+/-0.05 |
Product: ultrasonic fog disc
Ceramic Material: 4D13
|
Piezoelectric |
Free |
Dielectric Loss tand[%] |
Resonant Frequency fst[MHz] |

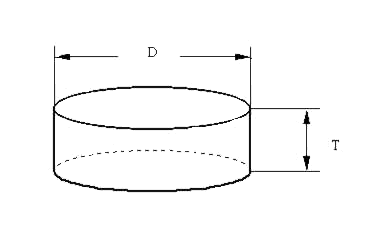

Outline dimensions |
||
D[mm] |
T[mm] |
||||||
Æ20´2.0mm |
A |
>300 |
2000+/-10% <=0.5% |
1.0+/-5% |
20+/-0.25 |
20+/-0.25 |
2.0+/-0.02 |
B |
>310 |
3000+/-10% <=0.5% |
2.4+/-5% |
20+/-0.25 |
20+/-0.25 |
0.84+/-0.02 |
|
C |
>300 |
4800+/-10% <=0.5% |
2.3+/-5% |
20+/-0.25 |
20+/-0.25 |
|
|
Æ22´2.0mm |
A |
>300 |
2000+/-10% <=0.5% |
1.0+/-5% |
22+/-0.25 |
22+/-0.25 |
2.0+/-0.02 |
|
C |
>290
|
1900+/-10% <=0.5% |
1.0+/-5% |
22+/-0.25 |
22+/-0.25 |
|
Æ25´1.22mm |
A |
>310 |
1900+/-10% |
<=0.5% |
1.65+/-5% |
25+/-0.25 |
1.22 |
C |
>280 |
1900+/-10% |
<=0.5% |
1.70+/-5% |
25+/-0.25 |
25+/-0.25 |
|
Æ30 |
D |
>280 |
3900+/-10% |
<=0.5% |
1.0+/-5% |
30+/-0.25 |
- |
Charge contants d33[pc/n] |
Free Capacitance c[pf] |
Dielectric Loss tand[%] |
Resonant Frequency fs [ KHz] |
Outline Dimensions |
||
D [mm] |
T [mm] |
|||||
Æ50.0´5.0 |
>320 |
4900+/-10% |
<=0.5% |
42+/-5% |
50.00+/-0.25 |
5.00+/-0.05 |
Æ50.0´3.0 |
>310 |
8000+/-10% |
<=0.5% |
42+/-5% |
50.00+/-0.25 |
3.00+/-0.05 |
Æ50.0´2.5 |
>300 |
8200+/-10% |
<=0.5% |
43+/-5% |
50.00+/-0.25 |
2.50+/-0.05 |
Æ50.8´2.54 |
>320 |
10800+/-10% |
<=0.5% |
42+/-5% |
50.80+/-0.25 |
2.54+/-0.05 |
Æ50.8´3.18 |
>320 |
800+/-10% |
<=0.5% |
41+/-5% |
50.80+/-0.25 |
3.18+/-0.05 |
Product: ultrasonic cleaner chip
Ceramic Material: 4D13
